Model：JX-S7066
Brand：Shanghai Jingxin
Specifications ：Set
Introduction：According to the standard,it is used for the determination of organic matter, and can be used in environmental monitoring, university scientific research, soil research institutes and other fields
Description：

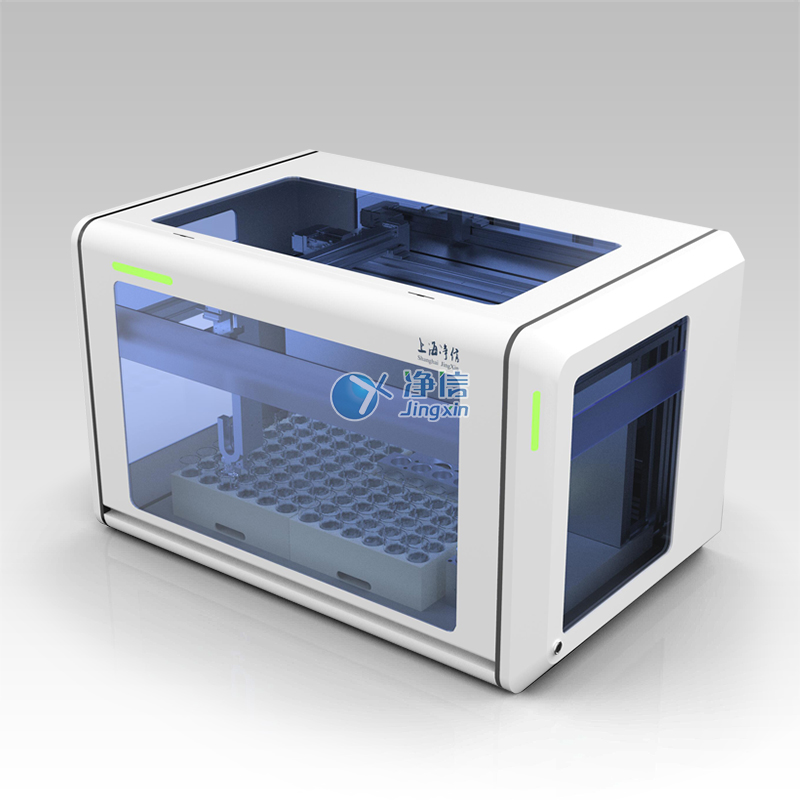

Soil organic matter automatic intelligent analysis workstation JX-S7066, tailored according to the needs of modern laboratories, according to the organic matter testing method NY/T1121.6-2006 "People's Republic of China Agricultural Industry Standard Soil Testing Part 6: Determination of Soil Organic Matter", Developed by LY/T1237-1999 and DZ_T0279.27-2016, it is suitable for the determination of organic matter in soil with organic matter content below 15%, organic matter in forest soil, regional geochemical samples, water system sediments and soil organic carbon content. , one key to open, no need for manual duty, completely replace the manual completion of the entire analysis process, including adding reagents (potassium dichromate, sulfuric acid solution), digestion, cooling, washing, color determination of the titration end point and automatic generation of experimental reports, the whole process does not require manual labor Intervention in batch accurate detection. It can be used in environmental monitoring, geology and mining, third-party monitoring, universities, soil research institutes and other fields.
Application：
According to the standard, NY/T1121.6-2006, LY/T1237-1999, it is used for the determination of organic matter, and can be used in environmental monitoring, university scientific research, soil research institutes and other fields.
Product Features and advantages：
Safer: The closed whole process of automatic analysis and detection does not require manual attendance, avoiding the harm of toxic reagents to laboratory personnel.

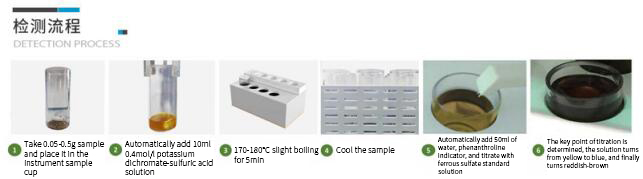

Easier: The operation interface is simple and easy to understand, "one-key detection" automatically imports sample information, one-key starts the experiment, automatic liquid addition, digestion and reflux, flushing, titration judgment, and data export.

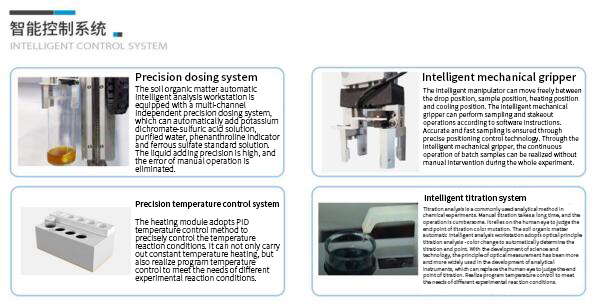

More accurate: Fuzzy PID precise temperature control, high-precision pump dosing, to ensure more accurate data.
More innovative: bionic color titration principle, contrast potentiometric titration, more in line with the requirements of the national standard. Program temperature control to meet different experimental conditions.
More environmentally friendly: The exhaust gas is absorbed by activated carbon during the experiment, so as to protect the experimental office environment.

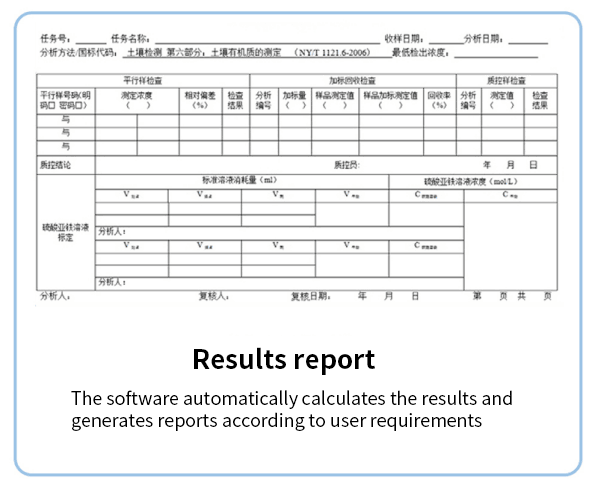

More efficient: The pipeline is automatically cleaned before work every day, and the batch samples are continuously tested (66 pieces/time), and the report can be automatically generated according to the requirements after the test is completed.
One-click detection：
When testing batches of samples, the operator only needs to open the software and click Start to perform batch testing by themselves.

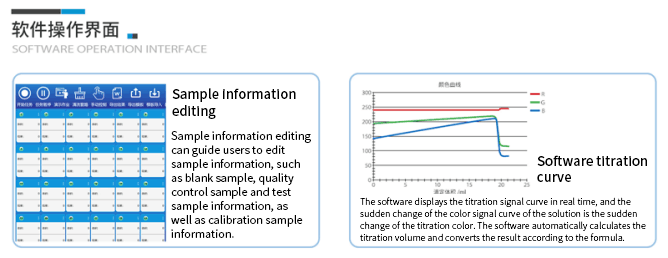

The automatic intelligent analysis workstation for soil organic matter is identified by a manipulator, grabs and moves the sample cup; accurately controls the temperature change during the micro-boiling process of the sample; in the titration process, through the principle of bionic color titration, it can accurately identify the color mutation of the titration end point; the software automatically passes the organic matter automatic Calculate the results and generate reports, and save the results to the database.
technical parameter：
Main parameters | Parameters range |
Fill bit: | 1 level |
Digestion bit: | 4 bit |
Sample bit: | 66/78 bit |
Temperature deviation: | ±0.5℃ |
Titration accuracy: | 0.01ml |
Filling error: | ≤0.2% |
Relative Standard Deviation (RSD): | ≤5% |
Power supply: | 220V/50HZ |
